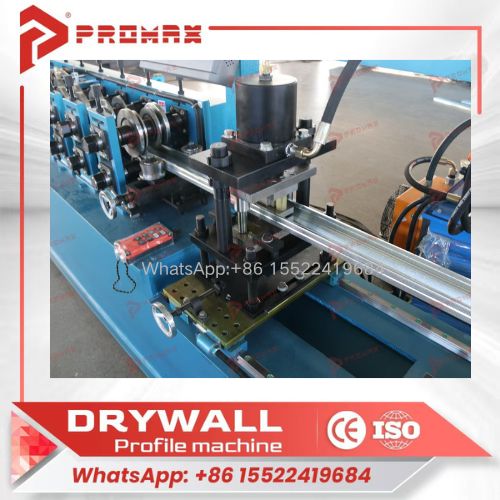

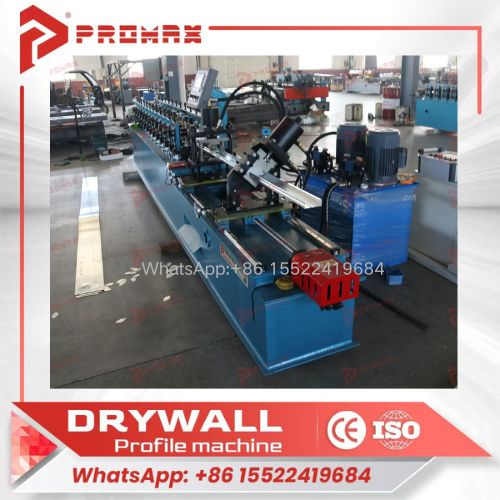

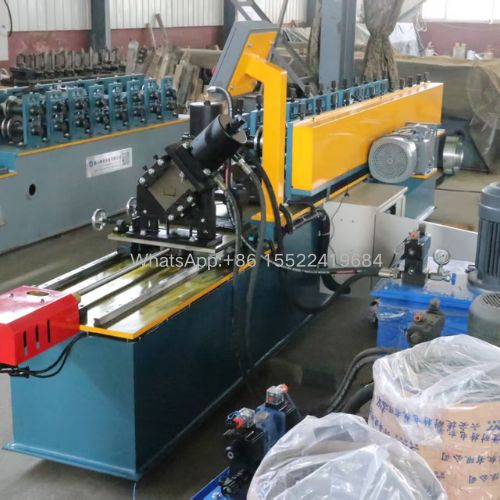

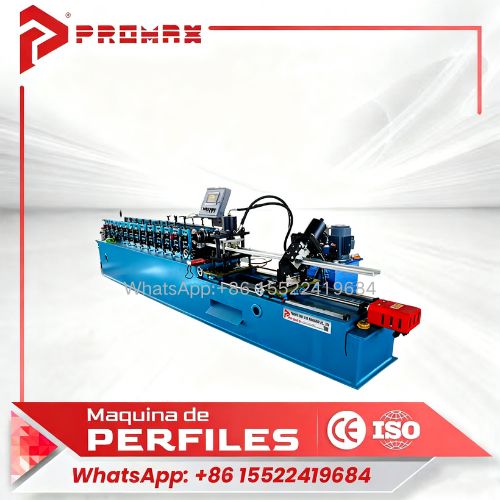

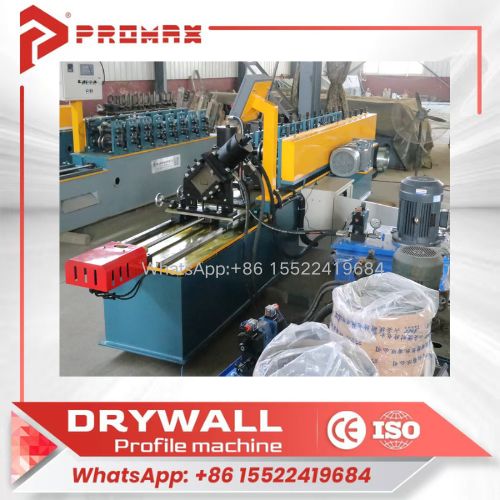

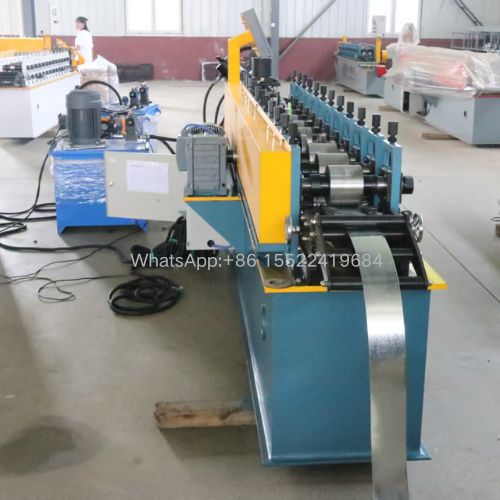

U-Shaped Keel Machine – High-Efficiency Cold Roll Forming Equipment
Machine Features
1. Automated Precision Production
Equipped with a numerical control system (integrated touch screen), it realizes automated roll forming and fixed-length cutting of U-shaped keels, reducing manual intervention and ensuring consistent keel dimensions.
2. Durable and Stable Performance
Constructed with a high-strength steel frame and wear-resistant roller sets, it supports long-term continuous operation; the CE and ISO-certified design complies with international safety and quality standards.
3. Compatibility with Multiple Specifications of U-Shaped Keels
By adjusting roller set parameters, it can process U-shaped keels of different sizes (such as those for ceilings and partitions), meeting the material needs of various construction scenarios.
4. Efficient Post-Forming Cutting

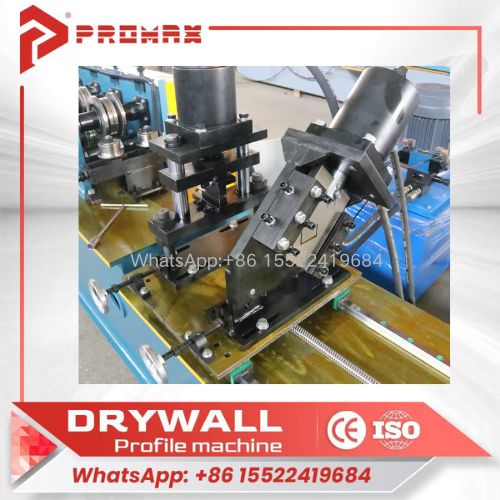

Integrated with a high-speed cutting unit, it can immediately complete fixed-length cutting of finished keels after forming, streamlining the production process and improving overall output efficiency.
Product Description
This U-Shaped Keel Machine is a professional cold roll forming equipment designed specifically for the mass production of U-shaped building keels. Through progressive roll pressing by multiple groups of rollers, it processes steel strips into standardized, high-precision U-shaped keels, which are then cut to the specified length by the built-in cutting mechanism.
Suitable for building material manufacturers, the equipment combines automation, durability, and multi-scenario adaptability, making it a reliable tool for modern industrialized building material production.
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.3-0.8mm |
| Width | 1000mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 13 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 7.5+4KW |
| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50Hz, 3Phase (customizable) |
| Forming Speed | 8-15m/min (The speed depends on the shape of the tile and the thickness of the material.) |
All-in-One Engineering Solutions
From initial concept to final production, we provide comprehensive support tailored to your needs.
Built to Last
Our machines are engineered for durability, delivering reliable performance over years of continuous operation.
Precision You Can Trust
Achieve consistent, micron-level accuracy in every product with our advanced roll forming technology.
Superior Materials
We use only premium-grade components to ensure strength, stability, and longevity.
Advanced Automation Systems
Equipped with cutting-edge electrical and control systems for enhanced efficiency and precision.
Haixing Industry Group – Precision Roll Forming Experts Since 1996
With nearly three decades of expertise, Haixing Industry Group specializes in designing and manufacturing high-performance roll forming machines and automated production lines. Trusted by over 5,000 clients in more than 150 countries, we turn custom requirements into reliable production solutions.
Our Core Values
Integrity as our foundation
Win-win cooperation as our mission
Our Promise
Customer-first mindset
Strict quality control at every stage
End-to-end technical support
Lifetime priority after-sales service
Global Reach. Proven Reliability. Customized Excellence.U-shaped track machine
